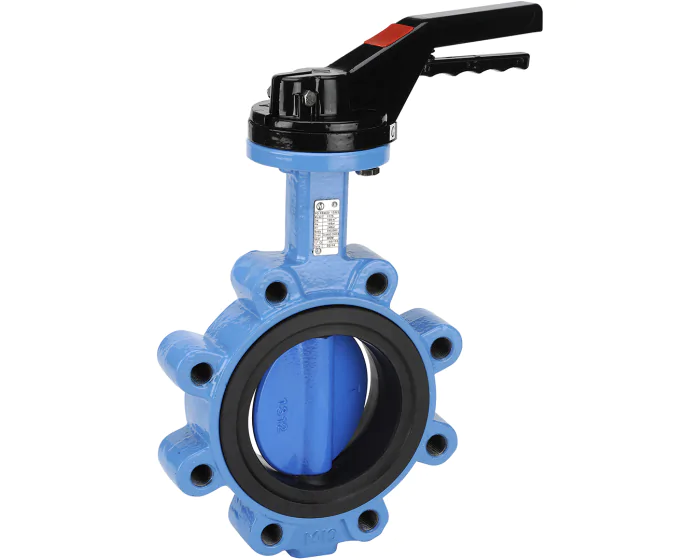

The 1175 lugged butterfly valve, with cast iron body and disc, EPDM seat, ACS certified, 1 piece body through, long neck for thermal insulation, for drinking water
| Specification | Value |
|---|---|
| DN inches NPS | 1''1/2 |
| Option certificate 3.1 | Yes |
| DN metric | 40/49 |
| Construction standard | BS 5155 |
| CE risk category | III Module H |
| Type of paint | Epoxy |
| Paint coating thickness (µm) | 250.00 |
| EN face-to-face standard | EN 558 Series 20 |
| DIN face-to-face standard | DIN 3202 Part.3 Series K1 |
| ISO face-to-face standard | ISO 5752 Series 20 |
| Tightness test standard | EN 12266-1 Rate A |
| Type of seat | Removable |
| Notch plate | Yes |
| Opening device | Handle |
| Application | Air conditioning / Heating |
| Shaft/stem matérial | Stainless steel AISI 416 |
| Lockable | Yes |
| Square, star (mm) | Square 9 mm |
| Torque (Nm) | 11 |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 33.0 |
| Fluid | Hot water / Cold water / Drinking water / Compressed air / Domestic fuel |
| Kv (m³/h) | 36.0 |
| Seat | EPDM |
| Body material | Ductile iron |
| Disc material | Cast iron EN GJS-400-15 |
| ISO pad 5211 | F07 |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 |
| TS max (°C) | 110 |
| TS min (°C) | -10 |
| Butterfly valve design | Concentric |
| Wafer/lug | Lug |
| Through shaft | Yes |
| Warranty period | 2 years |
| CE | Yes |
| Handle material | Aluminium |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 Ductile iron Concentric DN40 - 1''1/2 Between flanges PN10/16 Handle | 1175040 | S1009189 |
€33.16
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN50 - 2'' Between flanges PN10/16 Handle | 1175050 | S1009190 |
€35.80
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN65 - 2''1/2 Between flanges PN10/16 Handle | 1175065 | S1009191 |
€43.76
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN80 - 3'' Between flanges PN10/16 Handle | 1175080 | S1009192 |
€49.73
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN100 - 4'' Between flanges PN10/16 Handle | 1175100 | S1009193 |
€65.64
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN125 - 5'' Between flanges PN10/16 Handle | 1175125 | S1009194 |
€90.93
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN150 - 6'' Between flanges PN10/16 Handle | 1175150 | S1009195 |
€104.19
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN200 - 8'' Between flanges PN10 Handle | 1175200 | S1009196 |
€164.10
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN200 - 8'' Between flanges PN16 Handle | 1175201 | S1009197 |
€164.10
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN250 - 10'' Between flanges PN10 Handle | 1175250 | S1009198 |
€229.57
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN250 - 10'' Between flanges PN16 Handle | 1175251 | S1009199 |
€229.57
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN300 - 12'' Between flanges PN10 Handle | 1175300 | S1009200 |
€312.81
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN300 - 12'' Between flanges PN16 Handle | 1175301 | S1009201 |
€312.81
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN350 - 14'' Between flanges PN10 Gears | 1175350 | S1009202 |
€545.40
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN350 - 14'' Between flanges PN16 Gears | 1175351 | S1009203 |
€545.40
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN400 - 16'' Between flanges PN10 Gears | 1175400 | S1009204 |
€1,127.61
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN400 - 16'' Between flanges PN16 Gears | 1175401 | S1009205 |
€1,127.61
(excl. btw)
|
add to cart |
